After seeing a few questions and comments about putting non JeeLabs bits onto JeeNodes, and having done it myself a few times, I thought one of these might be useful...

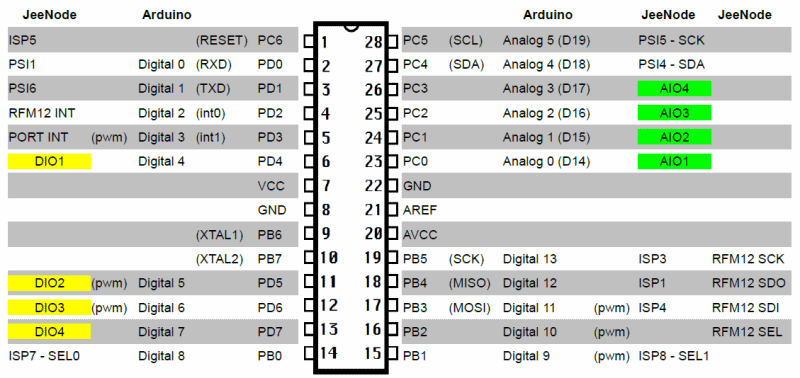

Basically it's a pin diagram of an ATmega. All the pins are labelled with all their known names. The Arduino names, the JeeNode names, and anything else I could think of whilst I was doing it!
Thanks to Stef007 for his fantastic link http://tinkerlog.com/2009/06/18/microcontroller-cheat-sheet/
I combined this with info from JC's Jeenode V4 PDF...
http://farm5.static.flickr.com/4087/4840782367_224bfea12b_o.gif
The ports are labelled JP followed by the port number, then A for analogue or D for digital. The interrupt pin is shared across all the ports so labelled JPint. The pins to the ISP are labelled, which are common to all the ATmega based board. The JeeNode then added two extra pins, 8 and 9 which give access to the Arduino digital 8 and 9.
Hope this is helpful.
